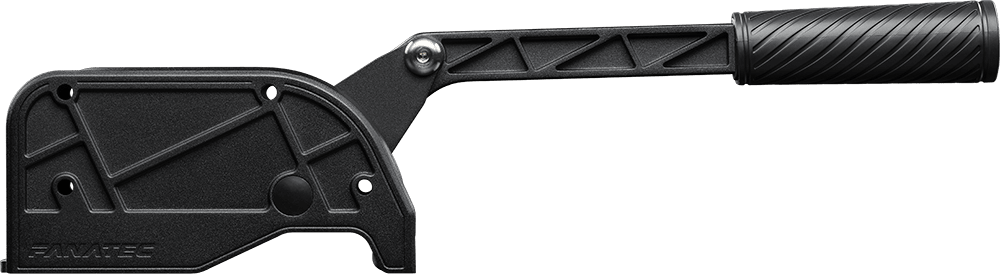

Fanatec ClubSport Handbrake V2
Ideal for rally and drifting, the all-new ClubSport Handbrake V2 is a huge step forward in performance and durability with stronger components and improved electronics.
$399.99 CAD
Description
Sideways fun
All-new design
The cast and CNC-finished metal construction has been totally redesigned to be stronger and more robust. Ball bearings on the pivot point create a smooth and consistent feel.
Smooth analogue input

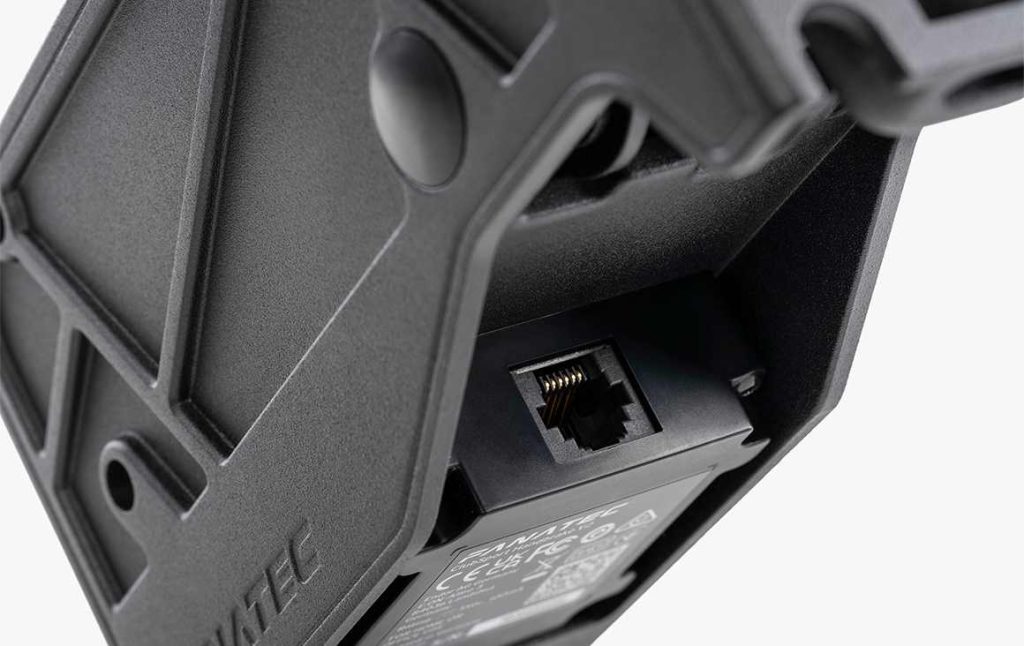

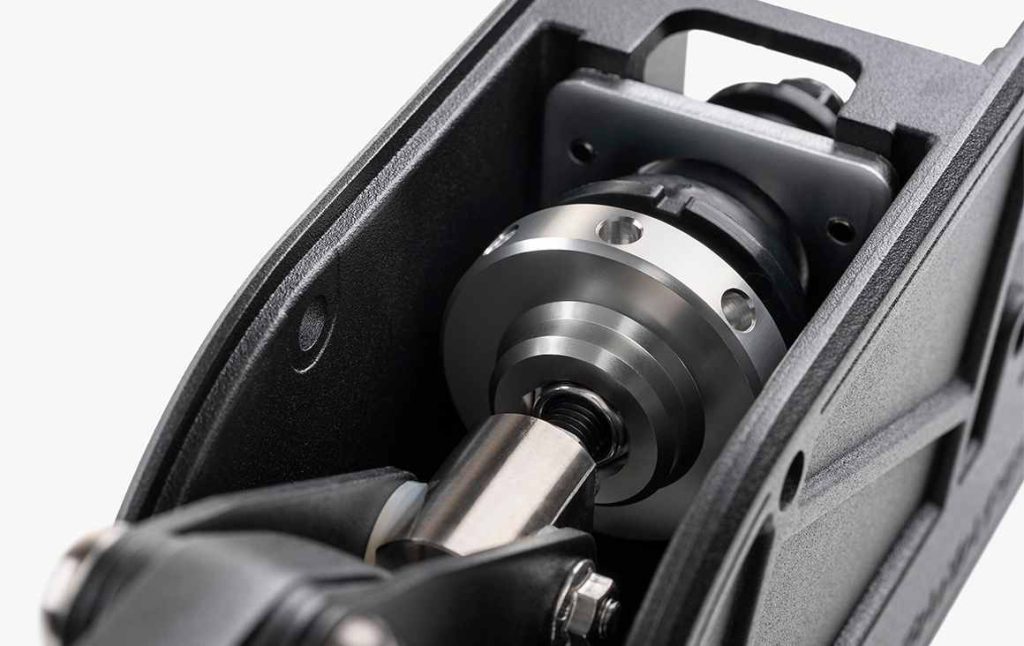

Equipped with a precision load cell sensor, the ClubSport Handbrake V2 delivers smooth, consistent analogue input. The RJ12 connection always ensures a stable signal.
Plenty of adjustment
The ClubSport Handbrake V2 offers much more adjustability than its predecessor, meaning you can set the preload, angle, and travel to suit your driving style.
Adjustable preload.
Simply open the casing for quick access to the preload adjustment disc. By adding more preload, you create more tension on the elastomer and load cell stack, increasing the initial resistance on the lever.
Adjustable angle and travel

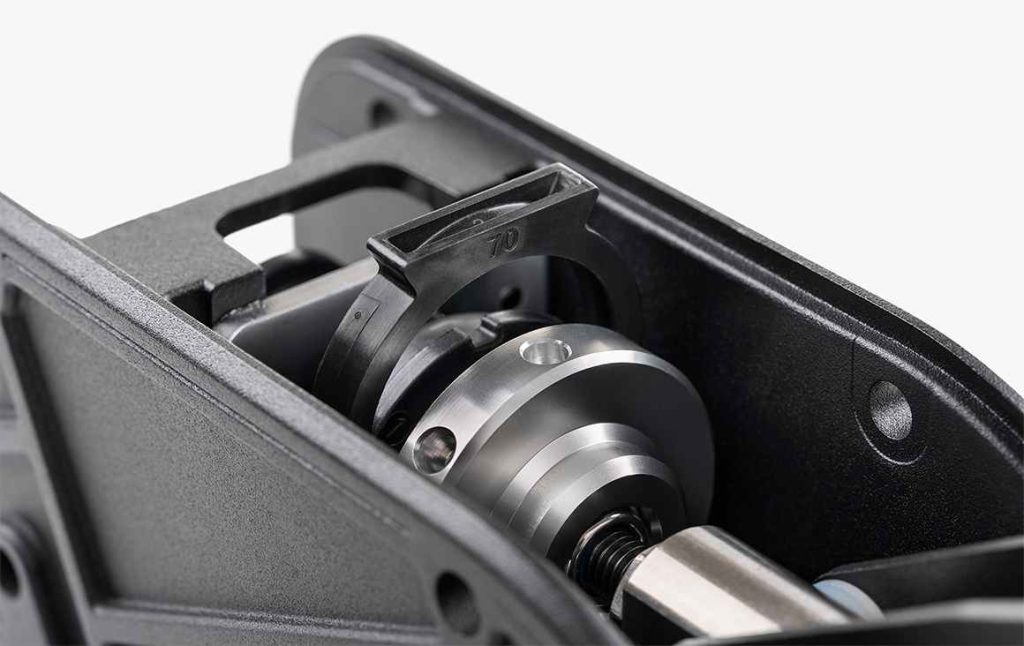

Three mounting positions on the lever allow for large angle changes, along with a rear bolt assembly for fine-tuning. The hand-removable spacer can be placed in two orientations, allowing a quick change between three travel settings.

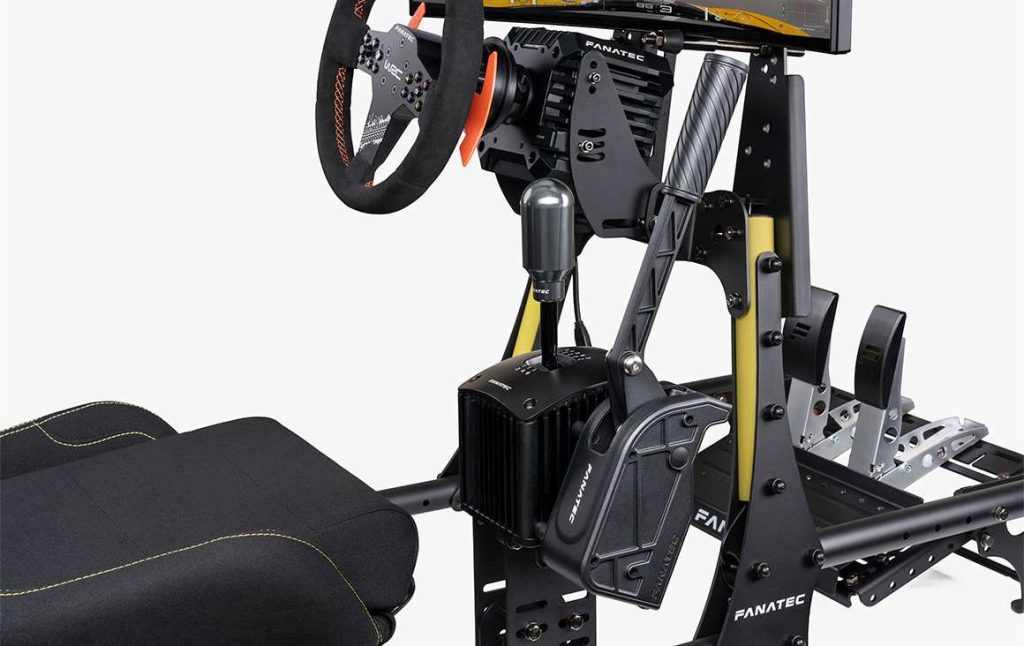

Mounting options
Hard-mount the ClubSport Handbrake V2 to a rig with various mounting holes, or to the side of a ClubSport Shifter (sold separately)
Side-mount
The ClubSport Handbrake V2 is designed to mount to the side of a ClubSport Shifter (sold separately) with the included spacer.

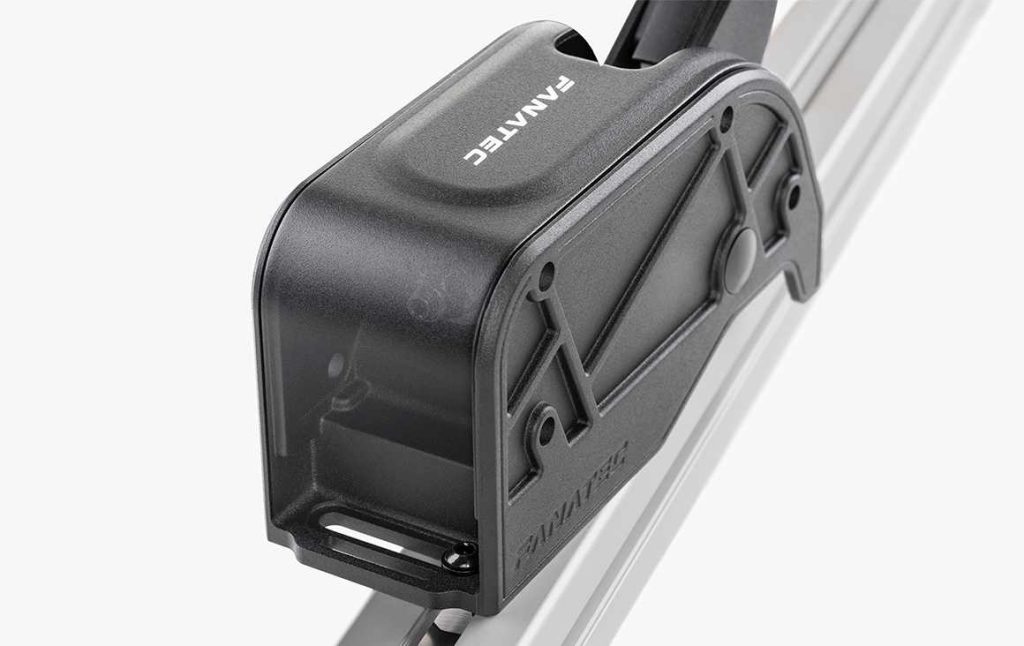

Angle mount
Mounting slots instead of holes allows the handbrake to be angled slightly towards the driver, which can be more comfortable.
Features
- All-new handbrake design ideal for rally and drifting
- Robust steel and aluminum construction
- Load cell sensor for precision analog input
- Ball bearings for smoother feel
- Powder-coated black aluminum casing and lever

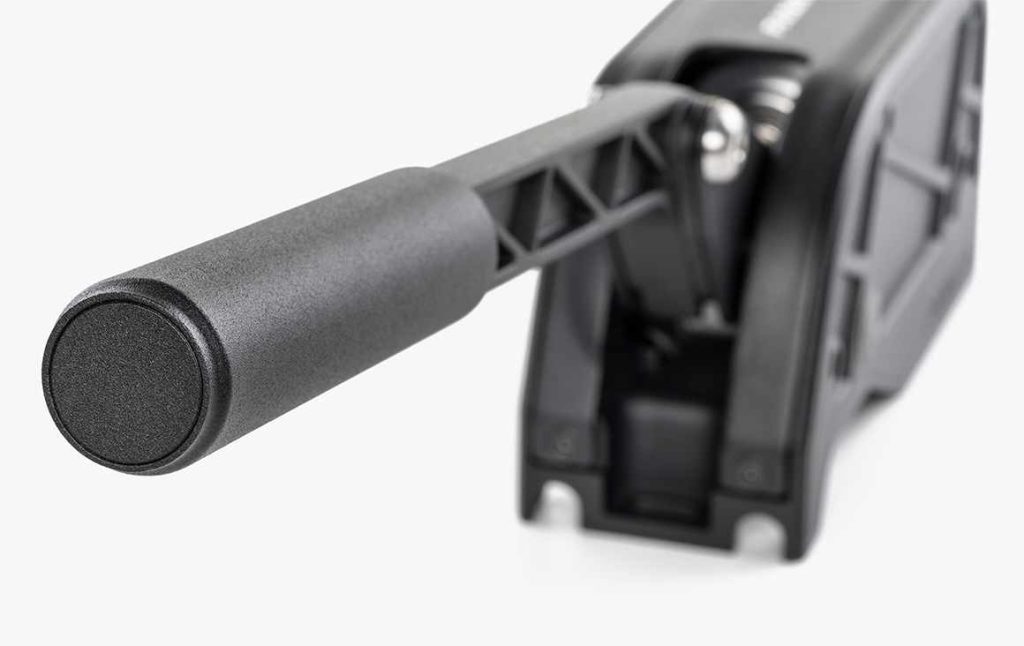

- Removable rubber grip
- Highly adjustable for stiffness, angle, and travel
- Adjustable preload
- Three angle positions
- Invertible orientation
- Fine angle tuning via rear bolt assembly
- Travel adjustment using removable spacer (60, 70, and 80 mm)
- Comprehensive mounting options
- Mounts to side of ClubSport Shifter with included spacer
- Mountable at an angle on aluminum profile
- Suitable for mounting in a vertical or horizontal orientation
- Table mounting possible (see Special Notes section below)
- RJ12 to RJ12 cable connects directly to your Fanatec Wheel Base
- Compatible with ClubSport USB Adapter (sold separately) to use as a standalone USB device on Windows PC
- Works on PC and consoles, see Compatibility section below
Compatibility
Wheel Bases
This product is compatible with the following Wheel Bases
- CSL Elite Wheel Base*
- CSL Elite Wheel Base V1.1*
- CSL Elite Wheel Base + – officially licensed for PS4™*
- CSL DD
- Gran Turismo DD Pro Wheel Base
- ClubSport Wheel Base V2*
- ClubSport Wheel Base V2.5*
- ClubSport DD
- ClubSport DD+
- PODIUM Wheel Base DD1
- PODIUM Wheel Base DD1 PS4™
- PODIUM Wheel Base DD2
*The analogue signal is not optimised for belt-driven Wheel Bases at this time (it is functional, but the ‘max’ output does not calibrate as intended). This will be improved in a future firmware update.Pedals: It is also possible to connect this product to the Handbrake port on the following pedals:
- CSL Elite Pedals Load Cell Kit
- CSL Elite Pedals V2
- ClubSport Pedals V3
- ClubSport Pedals V3 inverted
Other:
- ClubSport USB Adapter (only needed to use as a standalone USB device on PC)
Platforms
- PC: this product is compatible with Windows PC when connected to a supported Fanatec Wheel Base or Pedals (see list below). It is also possible to use as a standalone USB device using the ClubSport USB Adapter (sold separately). Functionality is game-dependent.
- Xbox: this product becomes compatible with Xbox One and Xbox Series X|S consoles when connected to a supported Fanatec Wheel Base + Xbox licensed Fanatec Steering Wheel. Functionality is game-dependent.
- PlayStation: this product becomes compatible with PlayStation 4 and PlayStation 5 consoles when connected to a supported PlayStation-licensed Fanatec Wheel Base. Functionality is game-dependent.
Tech Specs
| Tags Compatibility | PC, PlayStation Ready, Xbox Ready |
|---|---|
| Product Series | ClubSport |
| Weight Unit of Measurement | KG |
| Platform | PC, PlayStation Ready, Xbox Ready |
|---|
What's Included
- ClubSport Handbrake V2
- Tools
- RJ12 cable (2m)
- Quick Guide
Special Notes
- To ensure the best performance, it is important to update your Wheel Base (and any other connected devices) to the latest firmware contained within the Fanatec Driver.
- It is possible to table-mount the ClubSport Handbrake V2 by first mounting it to a ClubSport Shifter in combination with the ClubSport Shifter Table Clamp (sold separately).
Additional information
| Weight | 1.5 kg |
|---|
